Shot peening, a surface treatment which has become a critical process in many industries due to its ability to improve metal fatigue properties of components of almost any size or geometry and extend the life of critical components that could potentially fail.
Metal fatigue occurs during cyclic loading via tensile stress that has the potential for a crack to start in highly stressed areas. Shot peening mitigates this by imparting a high magnitude, residual compressive stress at the surface in potential failure areas.

When operating in a higher cycle fatigue (lower stress) environment, typical fatigue improvements with shot peening are:

  • 3x-10x fatigue life increase
  • 10-30% fatigue strength increase

Shot Peening – Process Video

Controlled Shot Peening – Process

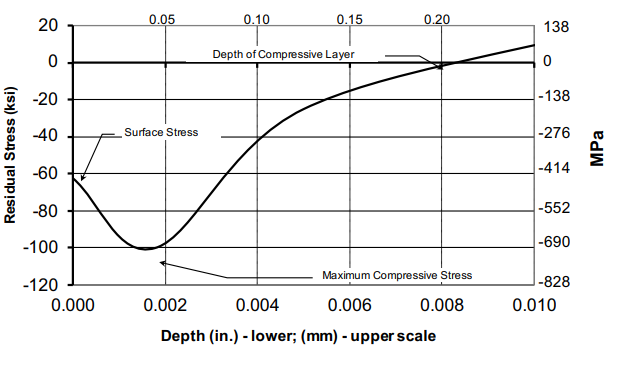

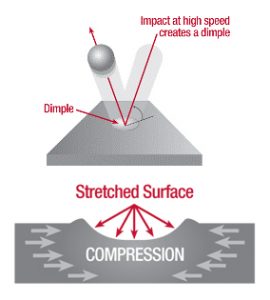

Controlled shot peening is a cold working process that uses spherical media known as a shot. As each piece of shot strikes the surface, a dimple is created along with beneficial compressive residual stress. It is a result of localized yielding being restrained by the substrate material (FIGURE 1). If present, prior manufacturing tensile stresses are converted to residual compressive stress. Compressive stress offsets or lowers applied tensile stress. Quite simply, less (tensile) stress equates to longer component life. A typical shot peening stress profile is depicted in (FIGURE 2).


CWST maintains a technical plan of processing instructions for each part number on file. Our facilities store thousands of technical plans for many years. The technical plans take into account – part geometry, masking requirements, base material properties, and review of thin sections to minimize the chance for distortion.

Shot Peening - Industry Specifications

  • AMS-S-13165
  • BAC-5730
  • PWA-6
  • RPS-428
  • AMS 2430
  • AMS 2432
  • J2441
  • MIL-S-13165C
  • ABP 1-2028
  • MIL-P 81985(AS)
  • MIL-STD-852
  • P11TF3

Please visit the Approvals Section of our website.

  • Prevent Fatigue Failure

Usually related to cyclic loading. Applied tensile stress at the surface is
most commonly from bending or torsion. Residual tensile stress induced during
manufacturing can also contribute to failure.

  • Prevent Metal Fatigue

Improves metal fatigue properties through the use of beneficial compressive
stress. This is proven to enhance protection against failures due to:

  • Metal fatigue commonly associated with bending or torsional loading
  • Stress Corrosion Cracking (SCC)
  • Fretting fatigue commonly associated with rotating components
  • Contact Fatigue (micro/macro pitting) associated with gear tooth geometry
  • Reduction of fatigue scatter from prior manufacturing operations (welding,
    grinding, anodizing, plating, aggressive machining/grinding, improper
    thermal exposure)

Shot Peening - Benefits

We can perform on-site shot peening of large components whose sizes exceed shipping limitations or which are installed on their foundations. Our field crews perform on-site shot peening services worldwide to the same quality standards as our processing centers. We utilize certified shot peening techniques to achieve the same level of quality.
Through our on-site capability, we can help customers avoid the logistics and costs of shipping oversized equipment while helping minimize equipment downtime.
Field crews utilize Almen strips, coverage verification & certified peening media to achieve the same high level of quality on-site as they do in-house.
Examples of on-site shot peening projects that CWST Company has performed successfully include:

  • Welded fabrications (pressure vessels, crusher bodies, ship hulls, chemical storage tanks, bridges)
  • Aircraft component overhaul & repair (wing sections, landing gear, other dynamically loaded components, corrosion removal)
  • Power plant components (heat exchanger tubing, turbine casings, rotating components, large fans)
  • Plastic pellet transfer facilities for directional peening
  • Miscellaneous processing plants (steel mills, paper mills, mining facilities)

Learn more >>

Shot Peening FAQs

Each operation may require a different machine for optimum production flow, thus adding to startup capital expenses and ongoing operational expenses. ID & OD peening, shot & glass bead peening, and multiple part sizes are all factors that may necessitate additional machines.
Pneumatic peening machines require a large volume of clean, dry, and uninterrupted air. Typically, air dryers are needed to keep moisture out of the system.

Yes, there are drawbacks to in-house shot peening, which include:

Noise – shot peening machines are loud and therefore disruptive to existing workflow

Environment – shot peening machines create a large amount of dust and must be carefully contained; they may not be compatible with many manufacturing operations. Sufficient quantity of clean, dry & uninterrupted (compressed) air.

Machines – over time, a peening machine will “eat itself up” from the inside. Replacement and repair of such items as nozzles, cabinet walls, motors, holding fixtures, and airlines are necessary on a regular basis and may require sudden and immediate attention. If shot peening more than one part, additional media & machines may be required

Cost – Unless machines operate at high capacity levels, they can be expensive to run

Approvals – Acquiring and maintaining industry certifications

Good quality peening media in accordance with AMS 2431 is fundamental to the process. Shot can frequently be a back-ordered item with a qualified supplier, causing serious production delays. Therefore it is imperative to maintain a substantial inventory of opening media.
In addition to needing trained and qualified operators, additional important requirements under most shot peening specifications include process development, equipment, and process shot control.

If you had a dedicated supplier in close proximity, could you better invest your capital allocation elsewhere? If an approved supplier operated a shot peening department in your facility, would this be an alternative solution?

If you have any questions regarding establishing your own internal shot peening capability, Curtiss-Wright Surface Technologies’ Technical Service Managers are available to discuss and evaluate your needs and develop a customized solution to meet your needs.

Additional Applications of Shot Peening

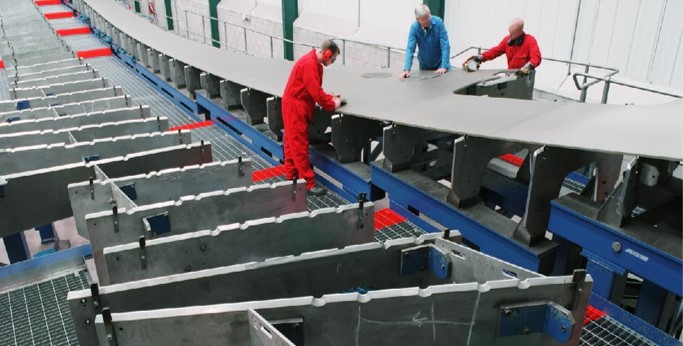

Shot Peen Forming

Controlled shot peening can also change the shape of a component (i.e. form the curvature in wing skins) and increase resistance to flexural bending fatigue. Read More

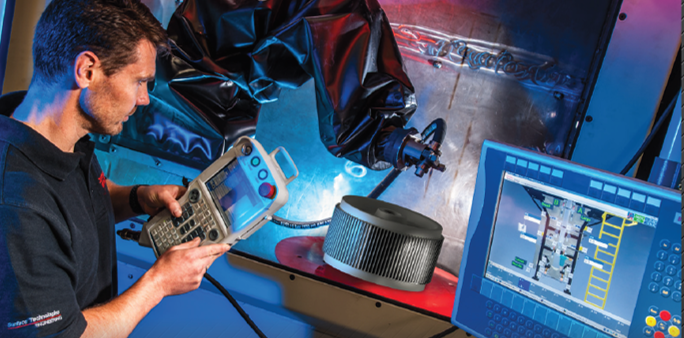

Robotic Peening

CWST offers robotic peening to meet the most stringent specifications. Robotic peening offers improved reliability and increased efficiency over previous generations of peening equipment.

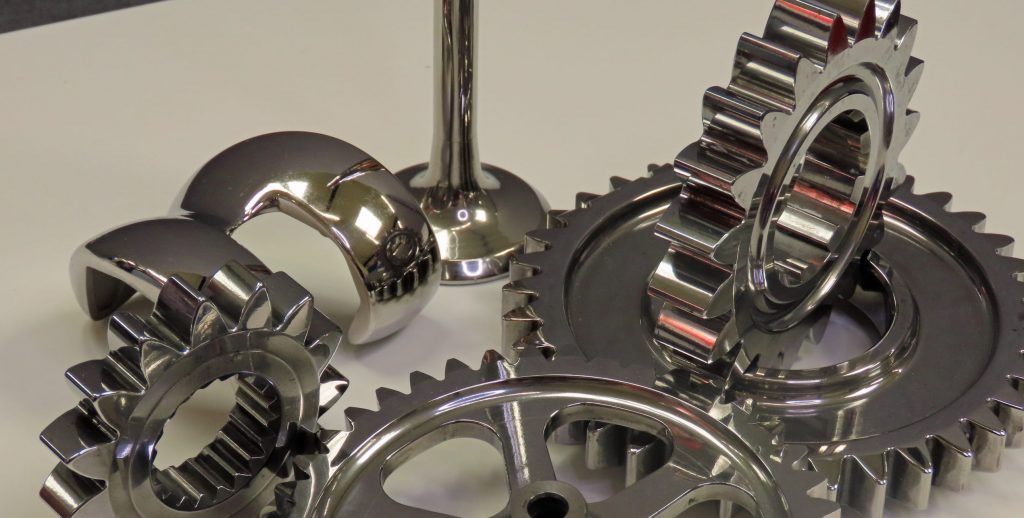

Vibratory Superfinishing​

C.A.S.E is the combination of shot peening followed by chemically assisted super finishing. Common applications are gears, shafts and air foil geometry. Surfaces are smoothed to a mirror like finish and valleys are left for lubricant retention. Read More

Peentex Surface Texturing ​

CWST offers robotic peening to meet the most stringent specifications. Robotic peening offers improved reliability and increased efficiency over previous generations of peening equipment.

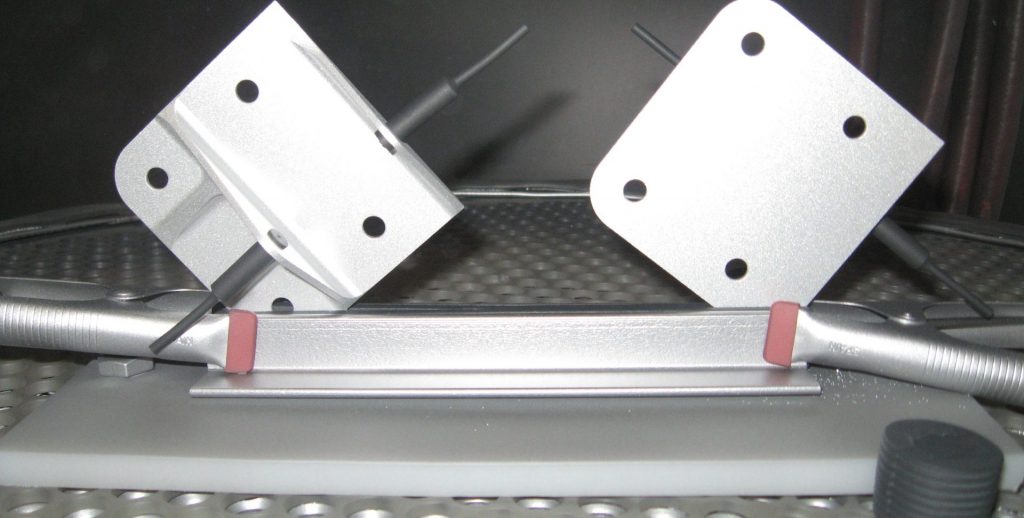

Glass Bead Peening

Glass Bead Peening is performed with glass shot which differs from the steel shot of regular shot peening.  This lower density show allows for peening of more delicate geometry such as threads.  Read More
