Laser Peen Forming

Curtiss Wright Surface technologies shot peen formed the wing skins for the Lockheed Super Constellation in the early 1950’s. They created the first aircraft with integrally stiffened wing skins. Since that time CWST has formed wing skins for a large number of Commercial Airliners, Business Jets, Military Aircraft and structural panels for Spacecraft. At times design Engineers have had to make concessions in the amount of curvature or material thickness of skins. This was due to the limited amount of strain available from alternative forming processes. The process augments shot peen forming by generating greater depths of induced strain, thereby allowing forming of thicker material sections and extending the degree of curvatures possible.  Laser peen forming is helping to advance the use of machined stringers and ribs for integrally stiffened panels which reduces the need for fasteners. All this allows for lighter aircraft with more fuel efficient profiles.

The deeper induced strain and compressive stress achieved by laser peening allows the formation of thicker sections and tighter curvatures. Compared to other methods, laser peening can provide a cost effective alternative for the forming of complex aerodynamic shapes.

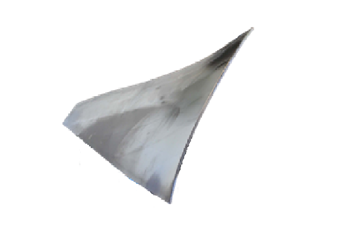

A 0.4 inch (10mm) thick piece of 7050 Aluminum formed by laser peening.
A 0.4 inch (10mm) thick piece of 7050 Aluminum formed by laser peening. The laser peening process was able to achieve a radius of 9 inches (230mm).
A 0.4 inch (10mm) thick piece of 7050 Aluminum formed by laser peening.
A proof of concept wing panel 6ft wide and 9ft long made by CWST from 7050 Aluminium 1/2 inch thick.
A proof of concept wing panel 6ft wide and 9ft long made by CWST from 7050 Aluminium 1/2 inch thick.
CWST formed this integrally stiffened panel machined from 2195 aluminum-lithium alloy
CWST formed this integrally stiffened panel machined from 2195 aluminum-lithium alloy
A CAD model of the 2195 AL-Li panel showing the machined stringers on the back side
A CAD model of the 2195 AL-Li panel showing the machined stringers on the back side
